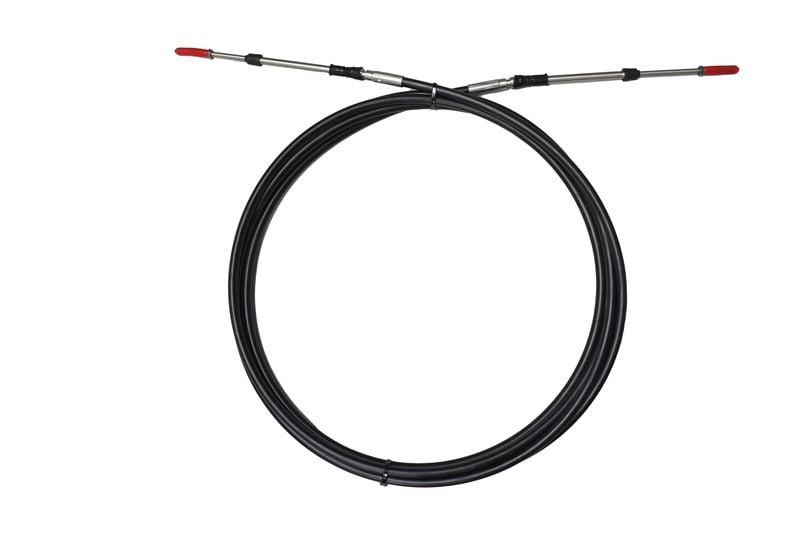

Version 3 Series Push Pull Cables (301)
Item Code: 301
Version 3 Control Cable with Clamp Hubs
- Stainless steel clamps
- Available in 2", 3", 4" and 5"cable travel
- HDPE outer conduit
- Flat wrap stainless inner core
- Rod size 10-32 unf (3/16")
To Suit:
- Suits multiple applications where a clamp hub is required both ends
Key Features
- Minimum bend radius = 125mm
- Outer conduit constructed using HDPE with an HDPE liner for smooth operation
- Ultilises flat wrap 2.7mm stainless steel inner core
- Temperature capability -40°c to +80°c
- Specialty cables available on request
Cable Measurement
- Cables are measured overall (tip to tip) and are manufactured in quarter metre increments
- Cables can be made to custom length upon request
- Example: 301050-0150 Version 3 Cable Grooved/ Grooved Cable with 50mm travel 1.50 overall length.
Also referred to as 30 Series Control Cable – 31C, 32C, 33C, 34C, 35C
