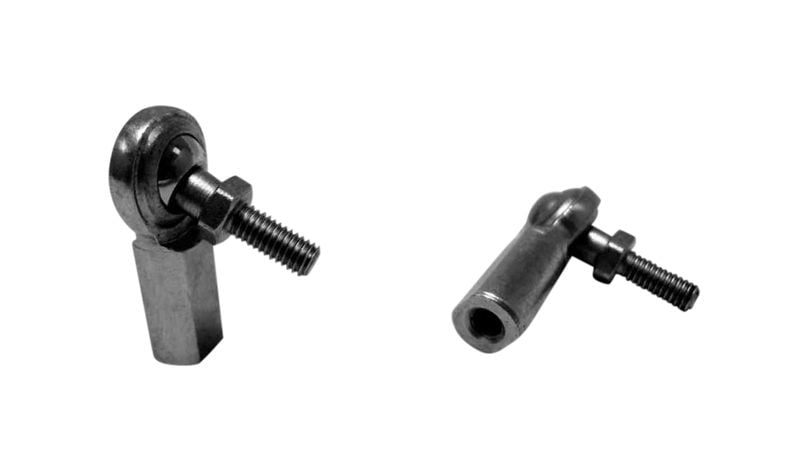

Plated Steel MPF Rod End - 1/4" x 1/4" (10407)

Thread: Female 1/4-28 RH x 0.750″ deep
Ball ID: 1/4″
Housing Material: Carbon Steel
Finish: Zinc Yellow Plated
Ball Finish: Hard Chrome Plated
Bearing Race: Nylon
Housing Width: 0.276″
Base of Rod End to Center of Ball: 1.312″
Ball Thickness: 0.375″
Stud Thread: 1/4-28 RH
Stud Length to centre of ball: 1.031″
Common Other Names for this Product: heim joint, rose joint
Application: This size rod end is often used in hand or foot actuated push-pull linkages.
Alternative Designs: For lighter duty linkage applications, consider our MSF (steel raced) series, STF (stainless) series, or MTF (teflon) series.
Metric Alternative: The metric equivalent to this series is our MPM series.
Warning: Regardless of a specific product's name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application.
