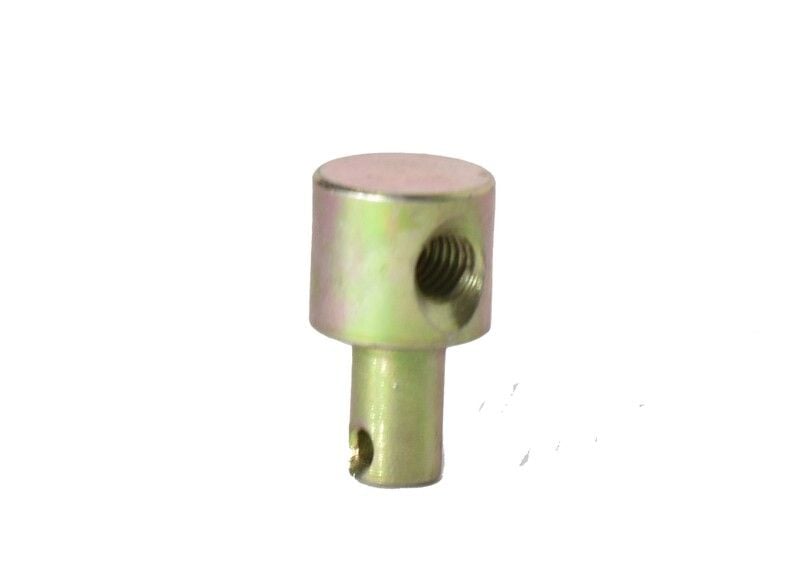

Pivot Foot Pedal 3/16 inch (00901)
Item Code: 00901
Cable end pivot – 6.00mm lever
- To Suit: All end rods 10-32 (3/16”unf)
Product Name: Pivot also called Swivel
Material: Low Carbon Steel
Finish: Plated Yellow
Fits Cable Thread: 10-32 UNF
Body Length: 0.75″ (19.14mm)
Body Width of Pivot: 0.225″ (5.72mm)
Split Pin Hole: 0.093″ (2.38mm)
Depth of Pivot: 0.276″ (7.02mm)
Application: Pivots / Swivels are used as mounting points on the ends of threaded rods and push pull cables
