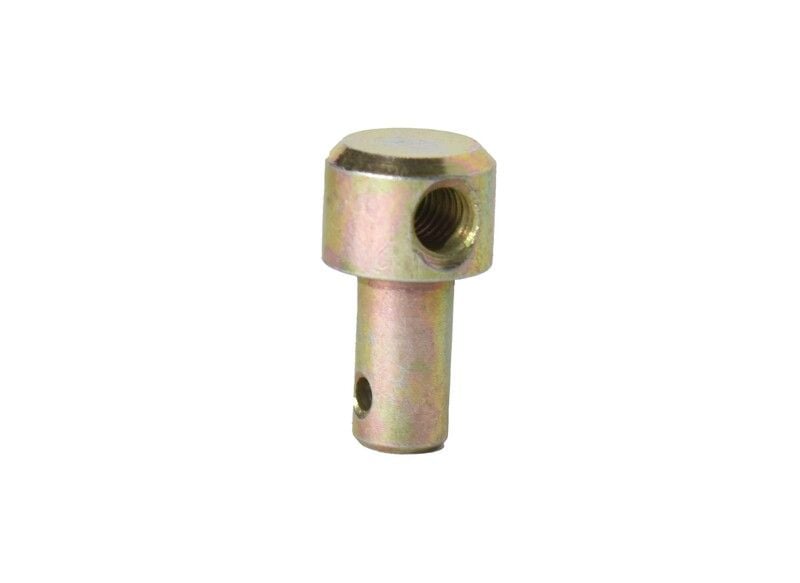

Cable End Pivot 3/16 inch 8.50mm Lever (00902)
Item Code: 00902
Cable end pivot – 7.00mm lever
- To Suit: All end rods 10-32 (3/16”unf)
Product Name: Pivot also called Swivel
Material: Low Carbon Steel
Finish: Plated Yellow
Fits Cable Thread: 10-32 UNF
Body Length: 0.781″ (19.83mm)
Body Width of Pivot: 0.247″ (6.27mm)
Split Pin Hole: 0.081″ (2.05mm)
Depth of Pivot: .335″ (8.50mm)
Application: Pivots / Swivels are used as mounting points on the ends of threaded rods and push pull cables
