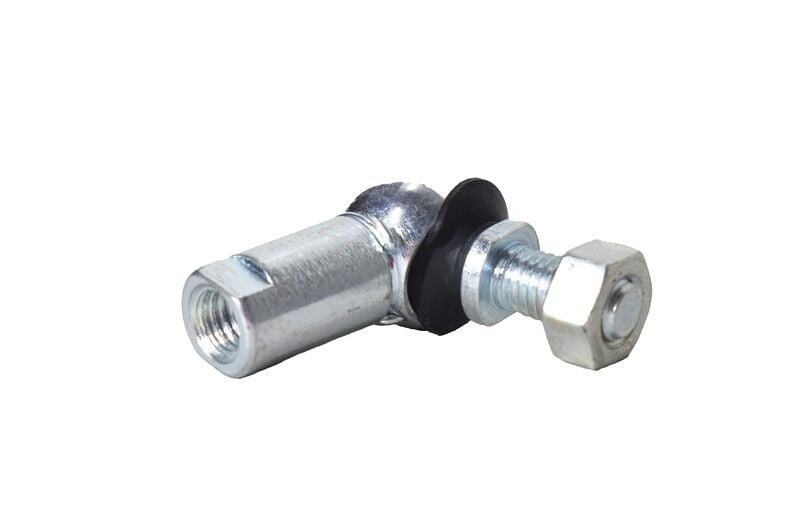

Fixed Ball Joint – Plated Steel M6 x 1.00 metric (21304)

Product Name:  Fixed Steel Ball Joint
Thread:  M6 x 1.00 x 11.50mm
Stud Thread:  M6 x 1.00 x 12.50mm
Housing Material:  Low carbon steel per DIN 71802
Finish:  Zinc Clear
Features:  The neoprene dust shield helps protect the bearing cavity from contamination
Common Other Names for this Product:  Removable ball joint, detachable ball joint
Application: Our metric ball joints are commonly used with push-pull cables, shifter cables, and throttle cables. This style of ball joint is considered ‘light duty’ and is NOT appropriate for suspension products or sway bar end links. The boot is not fully encompassing, and provides limited protection at high angles (ie: these are ‘economy’ ball joints).
Warning: Regardless of a specific product's name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application.
