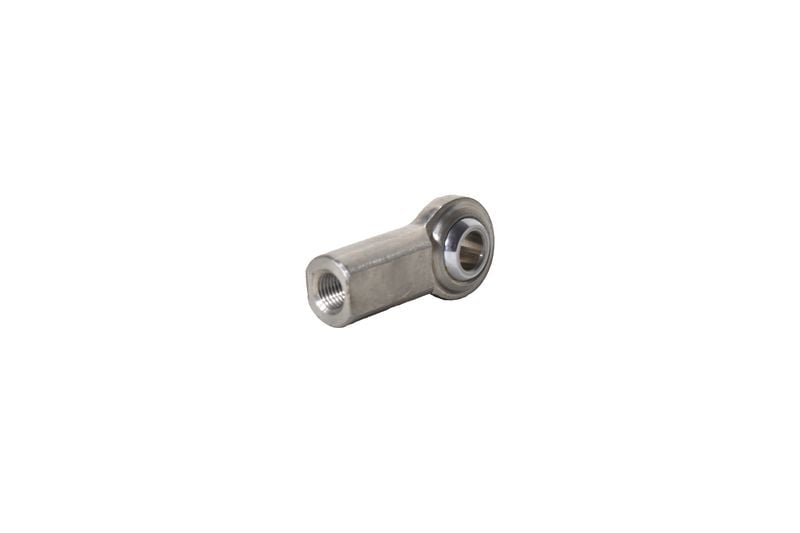

Stainless Steel Spherical Rod End - 5/16” x 5/16"  (10206)
Thumbnail

Stainless Steel Spherical Rod End - 5/16” x 5/16" (10206)

Item Code: 10206

Stainless Steel Spherical Rod Ends fit 5/16”- 24 unf

To Suit:  All 5/16”- 24 RH threads

Product Name:  Female Spherical Rod End
Thread:  Female 5/16-24 x 0.750″ deep
Ball ID:  5/16″
Housing Material:  300 Series Stainless Steel
Finish:  Bright Polish
Ball Finish:  Stainless Steel
Bearing Race:  PTFE
Housing Width:  0.875″
Base of Rod End to Center of Ball:  1.375″
Ball Thickness:  0.437″
Ultimate Static Load Rating:  2,465 lbs
Common Other Names for this Product:  heim joint, rose joint
Application:  This size rod end is often used in hand or foot actuated push-pull linkages
Alternative Designs:  For lighter duty linkage applications, consider our ASFM (steel raced) series, our DXTF (nylon) series, DSTF (stainless) series, or DPF (bronze zerked) series
Metric Alternative:  The metric equivalent to this series is our DXTF series
Warning:  Regardless of a specific product's name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application
